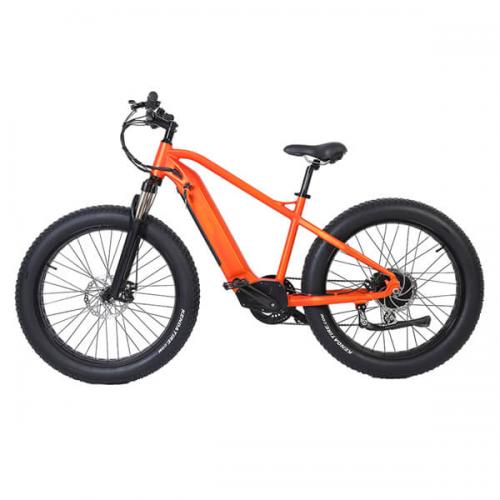

26 Inch Hardtail Electric Mountain Bike

26 Inch Hardtail Electric Mountain Bike
  • Model Number: KK3006
  • Brand Name: KUAKE
  • Place of Origin: Jiangsu, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

KK3006 26 Inch Hardtail Electric Mountain Bike Description

Motor: 48V/500W Bafang brushless mid-drive motor provides more than enough power to your daily commute, a cruise on the mountain, or a meander along your favorite trail, max speed can be reached 32km/h.

Battery: The Samsung battery has 3500 cells, the capacity is 48V/14Ah, the charging time will take 4-6 hours, and a battery life of 800~1000 cycles.

Display: The LCD display guarantees you can read your statistics easily, 12-19-26-33-40km/h.

Brake: Front and rear mechanical disc brakes are more efficient, so you need to apply less pressure at the lever for an equal level of braking power.

Shifters: Adjustable Shimano 8-speed transmission system which increases hill-climbing power, further range variation, and greater terrain adaptability.


kk3006 Electric Mountain Bike Specifications

Model NO.: KK3006

Net Weight: 37kg

Gross Weight: 40kg

Frame: AM2659-4.0-XII, 26″, Aluminum Alloy AL6061

Fork: 355-26″ full-suspension Aluminum

Gear: SGS 8 SPEED

Shifters: 8 Speed

Free Wheel: 8 Speed

Front Brake: EL550 M300 Mechanical Disc Brake

Rear Brake: EL550 M300 Mechanical Disc Brake

Pedals: B087 9/16 CR-MO BS black

Rim: P-80*26″*13G*36H, P-80*26″*12G*36H

Tires: Kenda K1151, 26*4.0

Inner Tube: 26*4.0

Spokes: 13G*253mm, 12G*215mm

Handlebar: HB-3188-W640 alloy

Stem: MA-410, ALLOY, EN15194

Grip: VLG884AD2 BLACK

Crank Set : FM3548DGA10/A, 3/32*48T*170MM

Brake Lever: EL550 M300

Head Set: VP-J203AE

Saddle: FREEWAY

Kickstand: CL-KA66, Alloy, Black

Chain: HG40


Electric System

Battery: 48V*14AH, SAMSUNG 3500 CELLS

Charger: 48V2A/SSLC109V55, GS/CE SAA/R OHS

Charge Time: 4~6 Hours

Recharge Times: 800~1000 Times

Motor Power: 48V 500W~1000W, RM G060.500.DC MIDDLE DRIVE

Controller: LSW-979(110M) 48V20A

Display: 12-19-26-33-40KM/H

Max Speed: 32km/h

Distance For Charge: 50-60km


Shipping Details

Packing Size: 1915*270*1090mm

40" Hq(Pcs): 110pcs

20" Hq(Pcs): 48pcs
