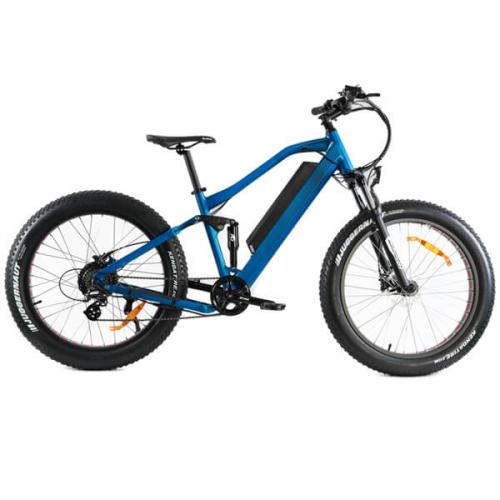

Full Suspension Fat Tire Electric Mountain Bike

Full Suspension Fat Tire Electric Mountain Bike
  • Model Number: KK9055
  • Brand Name: KUAKE
  • Place of Origin: Jiangsu, China
  • Minimum Order Quantity: 1
  • Supply Capacity: 10000/month
  • Payment: T/T, D/P, L/C, Paypal, Western Union
  • MemberShip: Free Member
  • Inquiry Now
  • Bookmark & Share:

KK9055 Full Suspension Fat Tire Electric Mountain Bike Description

Motor: 36V/250W Oxfo brushless rear-drive motor provides more than enough power to your daily commute, a cruise on the mountain, or a meander along your favorite trail, max speed can be reached 25km/h.

Battery: The battery has a capacity of 36V/10Ah, the charging time will take 4-6 hours and a battery life of 800~1000 cycles.

Display: The LCD display guarantees you can read your statistics easily.

Brake: Front and rear hydraulic disc brakes are more efficient, so you need to apply less pressure at the lever for an equal level of braking power.

Shifters: Adjustable Shimano 7-speed transmission system which increases hill-climbing power, further range variation, and greater terrain adaptability.


Bicycle Specifications

Model NO.: KK9055

Frame: 26″, AL6061 Aluminum Alloy

Fork: Spring adjustable suspension fork, lockable

Gear: Shimano 7 speed

Shifters: 7 Speed

Free Wheel: 7 Speed

Front Brake: Hydraulic disc brake, without power cut

Rear Brake: Hydraulic disc brake, without power cut

Pedals: Alloy aluminum with reflector

Rim: Aluminum alloy

Tires: 26″*4.0, KENDA

Inner Tube: 26″*4.0

Spokes: 13g Stainless steel

Handlebar: Alloy aluminum, sport model

Stem: Aluminum Alloy

Grip: Comfort grip with ergonomic shape

Brake Lever: Hydraulic brake lever, TEKTRO

Head Set: Aluminum Alloy

Saddle: Soft comfortable

Kickstand: Alloy aluminum


Electric System

Battery: 48V/17.5Ah Lithium Samsung battery cells

Charger: AC 100-240V Smart charger

Charge Time: 4~6 hours

Recharge Times: 800~1000 times

Motor Power: 48V 1000W Oxfo rear brushless motor

Controller: High-efficiency intelligent controller

Display: LCD Display

Max Speed: 25Km/H

Distance For Charge: 31~60 km


Shipping Details

Packing Size: 155*27*90cm

40″ Hq(Pcs): 170pcs

20″ Hq(Pcs): 65pcs
